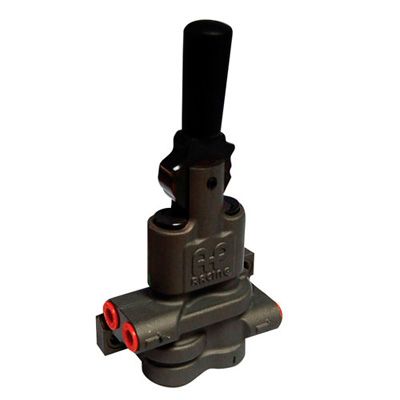

AP Racing Twin Bore Lever Type Proportioning Valve




AP Racing brake proportioning valves are designed for use in competition vehicles where it is desired to reduce the brake line pressure to compensate for varying road / track conditions. This twin bore valve has 2 inlet and 2 outlet ports which make it ideal for vehicles using the original master cylinder and twin brake lines, such as Group N. The valve offers 7 different pressure settings which are distinguished by a positive location of the lever, this means that quick adjustments can be made even while driving. The lightweight and compact body includes 2 holes for mounting to a panel or bulkhead and features inlet and outlet ports with an M10 x 1 female thread.

CP4550 Technical Drawing
