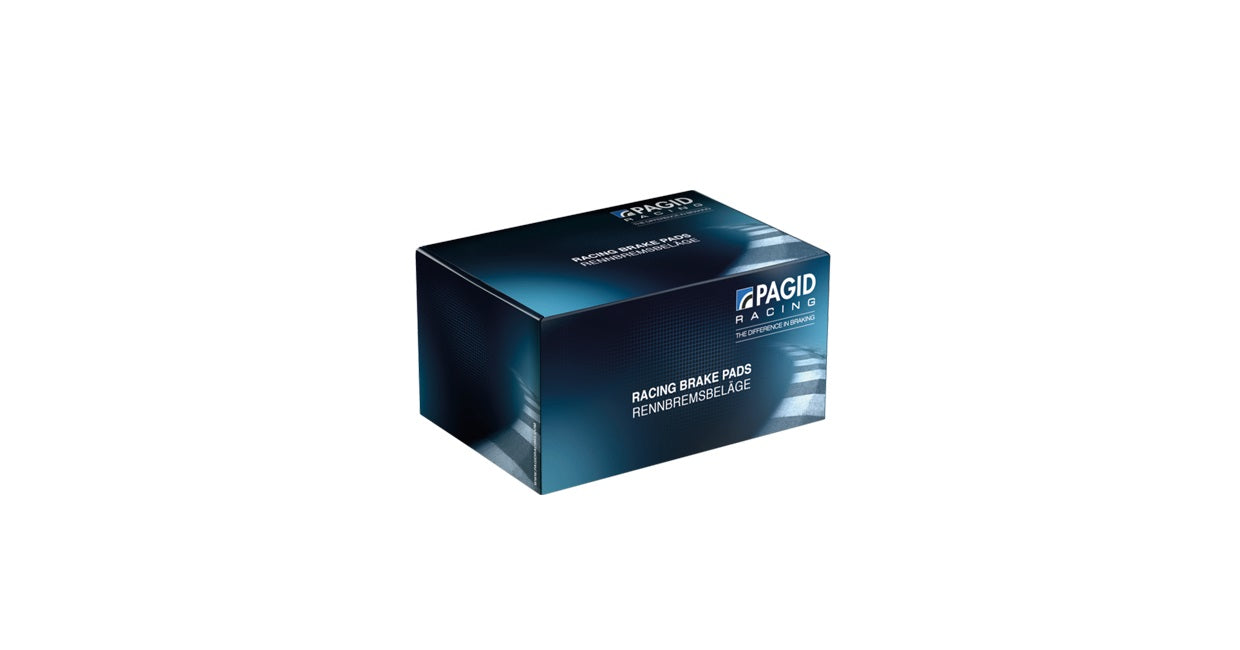

PAGID RACING SHAPE 1539
Will fit the following Calipers
Calipers
- Alcon TA6 / CAR89 / CAR11 (4489) D54
- AP Racing CP3558 D46 / D51 / D54
It's available in the following compounds as follows.
RSL1 & RSL1E
RSL 1E and RSL 1 are low metallic resin bonded materials containing steel and aramid fibers with very high heat resistance. They maintain a constant friction level over a wide range of temperatures. Their reduced wear rate and disc friendliness make these materials appropriate for endurance races. RSL 1E is further improved in terms of pad life and modulation as well as friction stability at high temperatures and pad life. As a benefit, RSL 1E provides the lowest pad wear rate in the PAGID Racing portfolio for highly thermally loaded applications.
RSL2
RSL 2E and RSL 2 are low metallic resin bonded materials containing steel and aramid fibers with high heat resistance. They maintain a constant friction level over a wide range of temperatures. Their reduced wear rate and disc friendliness make these materials appropriate for endurance races on applications with high cooling efficiency. RSL 2E is further improved in terms of pad life and modulation, as well as friction stability at high temperatures and pad life with optimized cooling.
RSL29
RSL 29 features very good modulation and release characteristics. It is a low metallic resin bonded material containing steel and aramid fibers. The friction level of the material maintains constant at a low-medium level. Another advantage is the easy bedding in behavior.

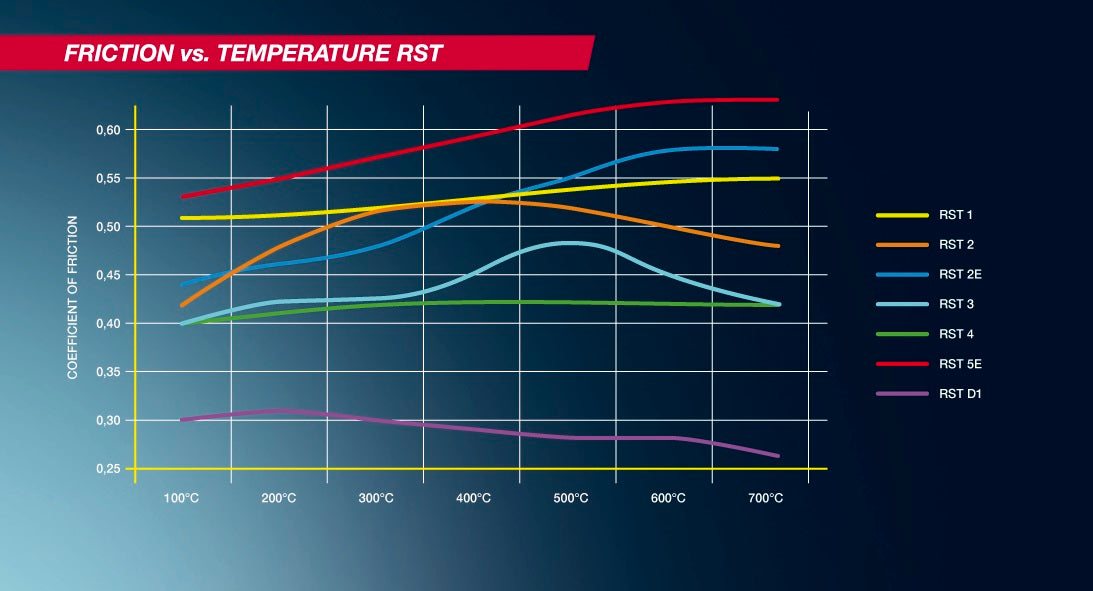

RST1
RST 1 has a very high friction level and high temperature resistance. It is a semi-metallic resin bonded material containing steel fibers. Cold friction and initial bite makes this material most appropriate for Rally and NASCAR applications.
RST3
RST 3 is a medium-high friction metal-ceramic compound containing steel fibers and is therefore the perfect complement of the RST product family. It captivates by its low heat conductivity.
RST5E
RST 5E has enhanced fade resistance as well as the highest initial bite and friction level of the PAGID Racing compound portfolio make it suitable for thermally high-loaded applications and make the RST 5E a top-end sprint equipment in terms of performance. Due to its OTM feature, the generated heat remains in the brake pad and is not transmitted into the brake fluid. RST 5E delivers the ideal balance between maximum performance and modulation.
