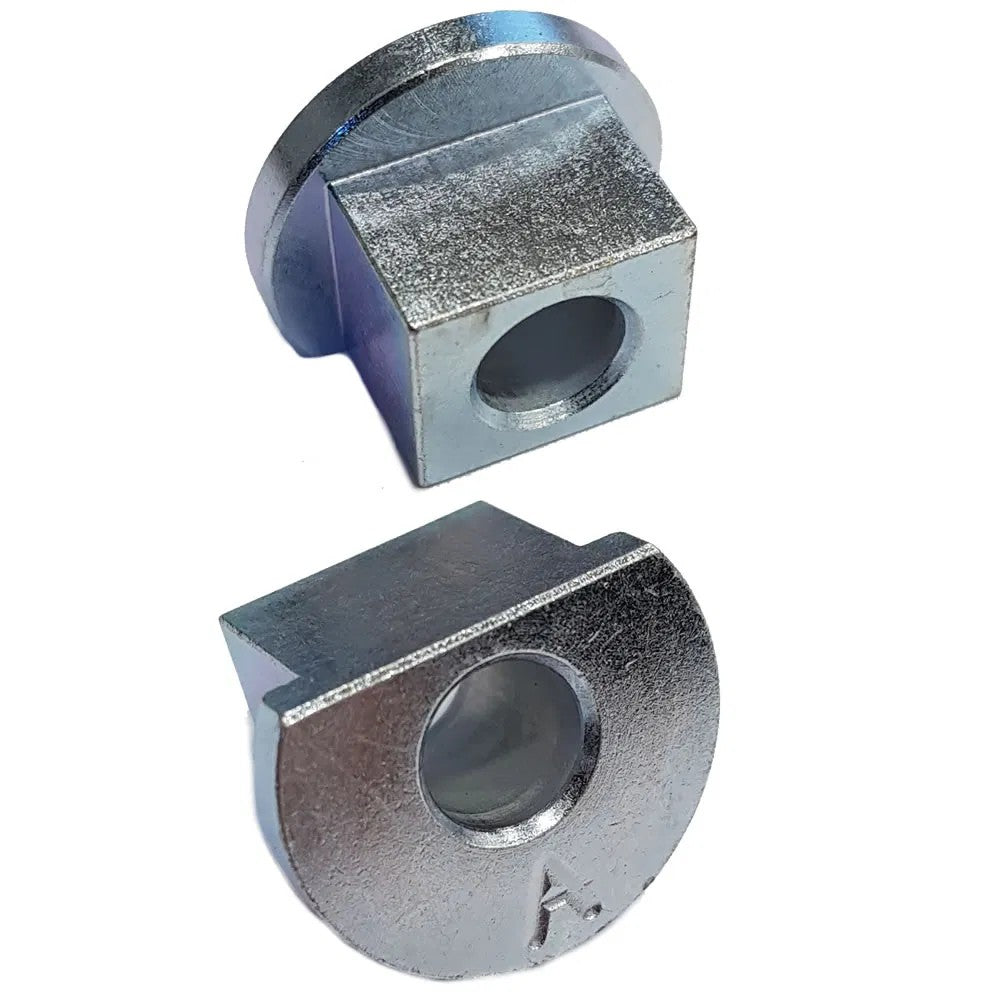

AP Racing Disc Bobbins - CP2494 "Float in Disc" Style




These are the individual Bobbins Only

The "Float in disc" range of bobbins has been improved and rationalised.
The most obvious changes are the new part numbers, an identification letter marked on the bobbin to identify the length and the removal of the flats on the bobbin head. The head flange thickness has also been increased from 2.0mm to 2.5mm, and the parts will be manufactured from a tougher and more durable material. The new part numbers are the same as the old part numbers but with a suffix added so they are easily recognisable.

CP2494-1341MD & CP2494-1342MM "Float in the Disc" have been added to the range.

CP2494-594 bobbin has been made obsolete, use CP2494-593MB.
Bobbins are also available in kit form. Kit comprises 12 x CP2494-117 nut, 12 x CP2494-118 washer, 12 x CP3845-100, -101 or -102 6Lobe bolts and 12 x relevant bobbin - Click here to purchase the kit version

Download "Float In Disc" Installation Drawing:
