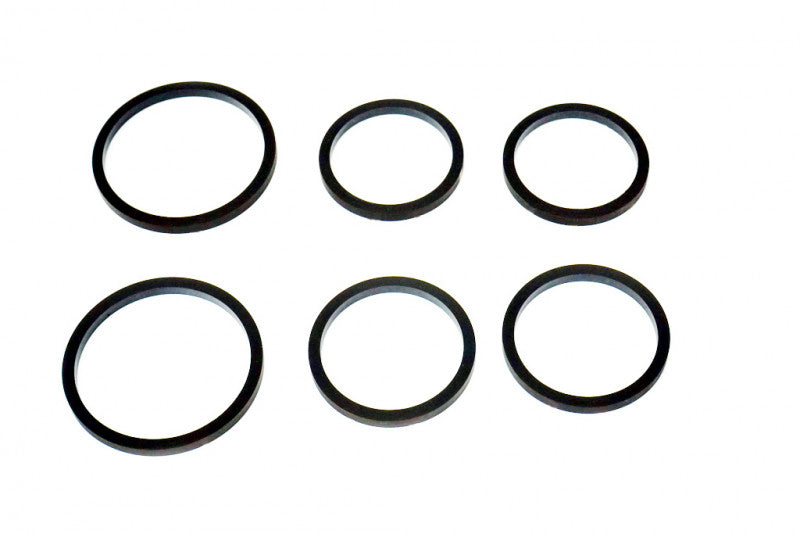

The drawings below help identify the square section seals found in AP Racing Brake Calipers.
IMPORTANT NOTE: These drawings need to be printed on A3 sized paper for 1:1 Scale.
- High Temperature Variants:
cp4900-13cd - High Temp SIB.pdf
- Very High Temperature Variants:
cp4900-18cd - Very High Temp SIB.pdf
If you require any further information, please contact our sales department and we will be more than happy to help
To view the AP Catalogue, click Here
